DEVELOPMENT

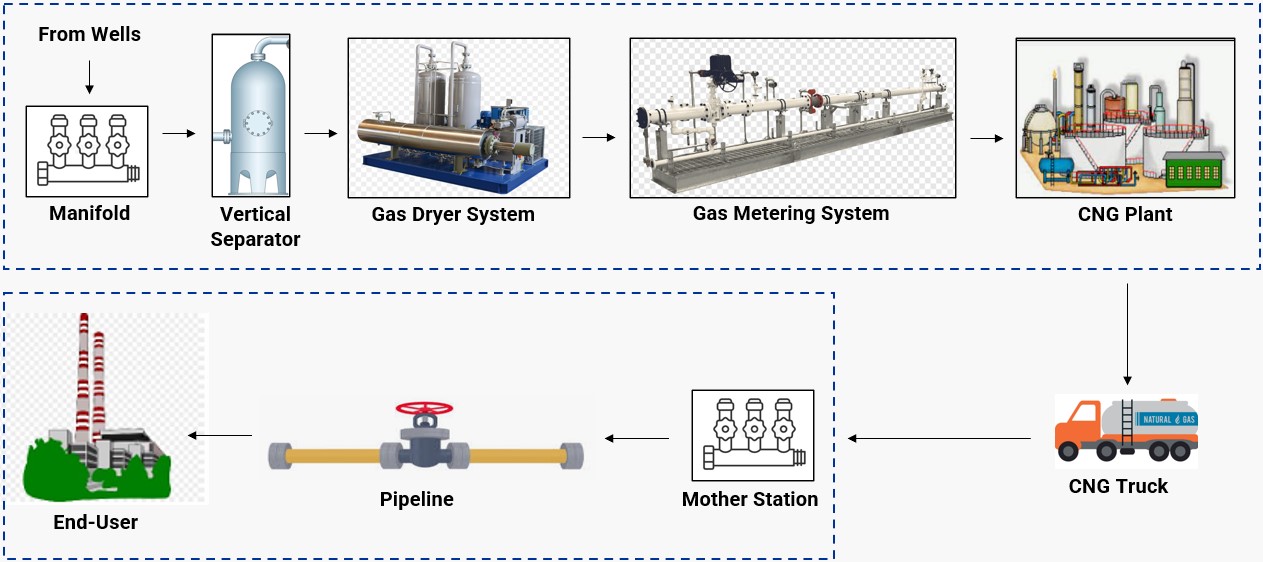

TANJUNG ENIM CBM EARLY GAS SALE PRODUCTION FLOW SCHEMATIC

This early gas sale commencing at 1 MMSCFD represents the initial and gradual progress of gas production and this initial gas production is part of Tanjung Enim development phase that will increase to a total peak production of 25 MMSCFD as approved under the Tanjung Enim POD-1.

The gas from wells will be collected into a manifold, then come to the separator and the dryer system to achieve the gas sales specification.


TANJUNG ENIM CBM FULL DEVELOPMENT PRODUCTION FLOW SCHEMATIC

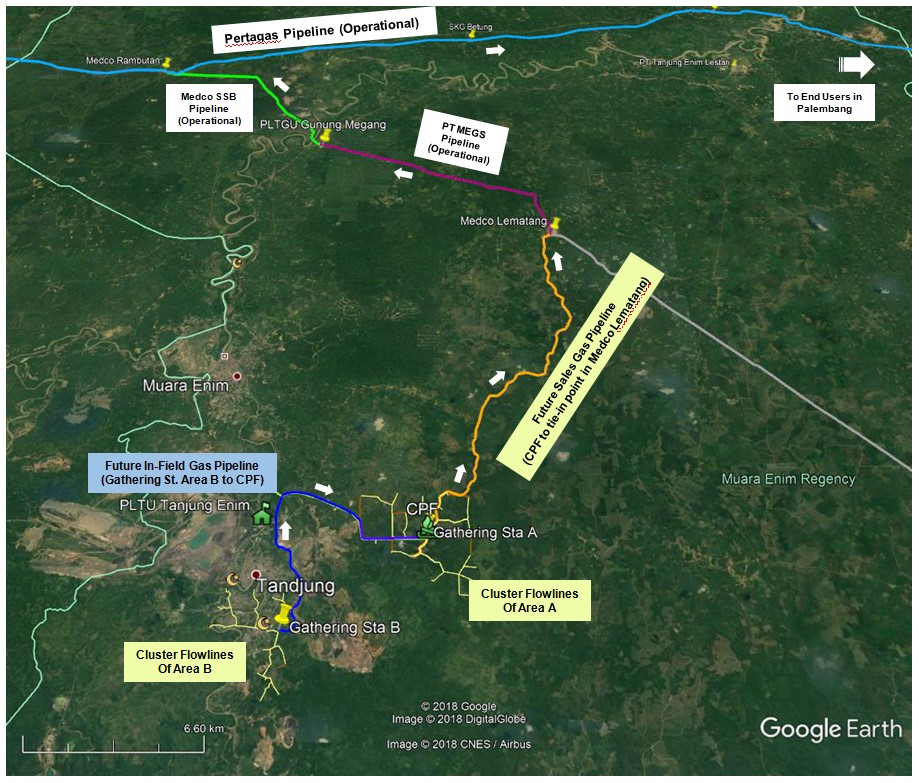

In the Full Development of the Tanjung Enim POD-1 is estimated to produce around 25 MMSCFD from Area A and Area B with 209 wells to be drilled throughout the POD Period.

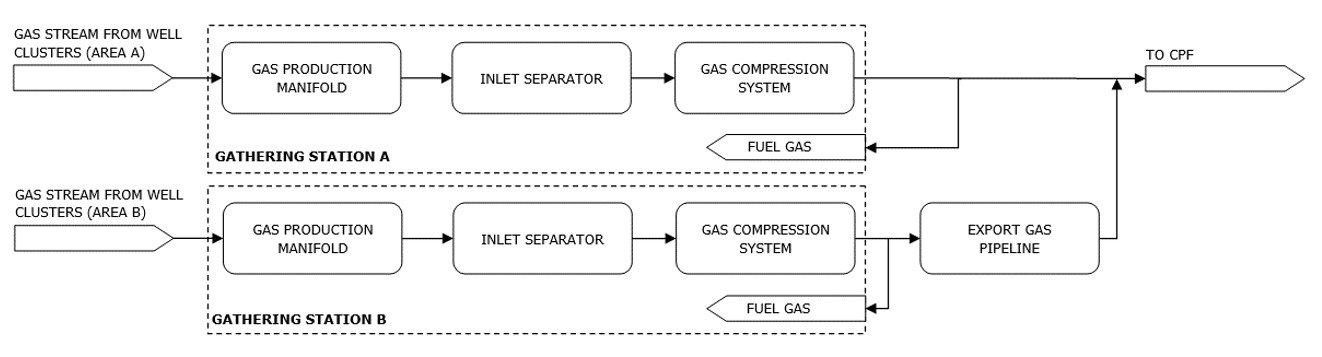

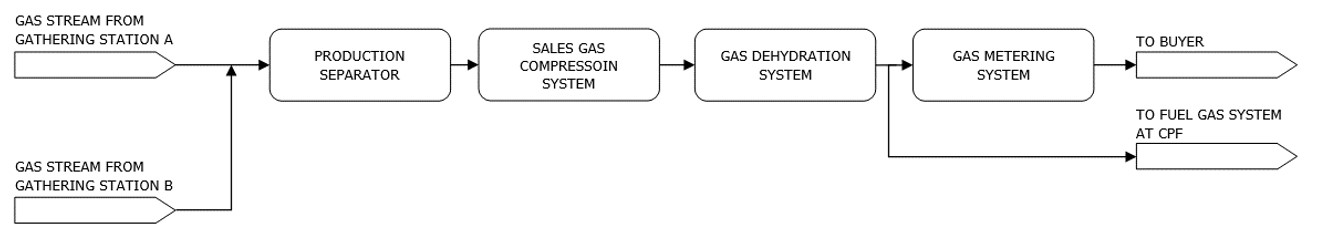

The gas produced from area A and area B will be collected at each Gathering Station A and B. where it will be separated from carried liquid and compressed prior to entering Central Production Facilities (CPF).
